Wired backhaul diagrams

note

Do you got feedback, something to add, or have I made a mistake? Feel free to create a GitHub issue over at https://github.com/o-l-a-v/o-l-a-v.github.io. 😊

About​

Here are some diagrams I've made to show how one should do wired backhaul with Google / Nest Wifi. The goal was to show it as simple as possible, with the audience being community users at googlenestcommunity.com.

Diagrams were made using draw.io with the IBM color blind safe color palette.

Best practice​

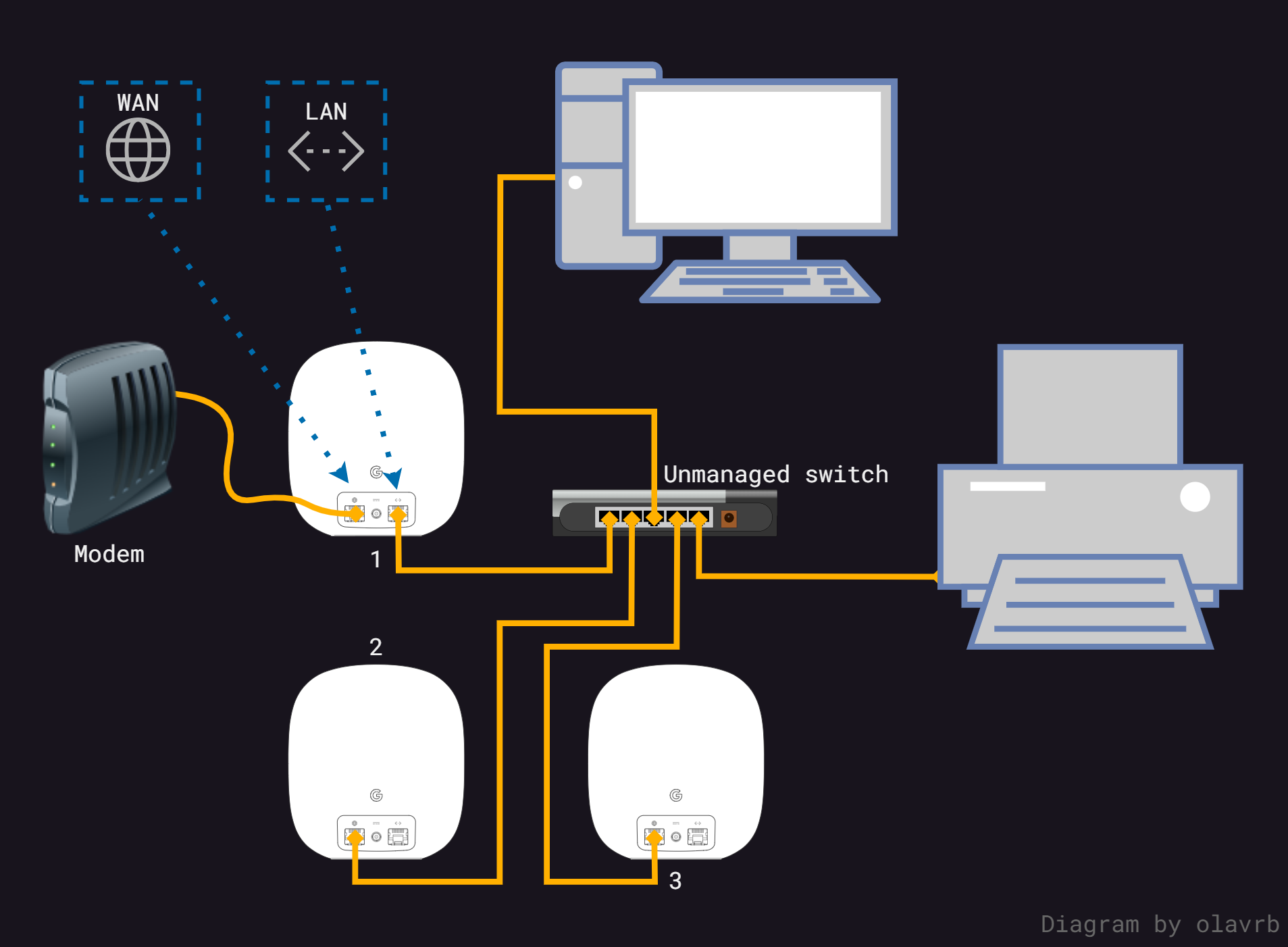

All secondaries wired with central unmanaged switch​

all-wired

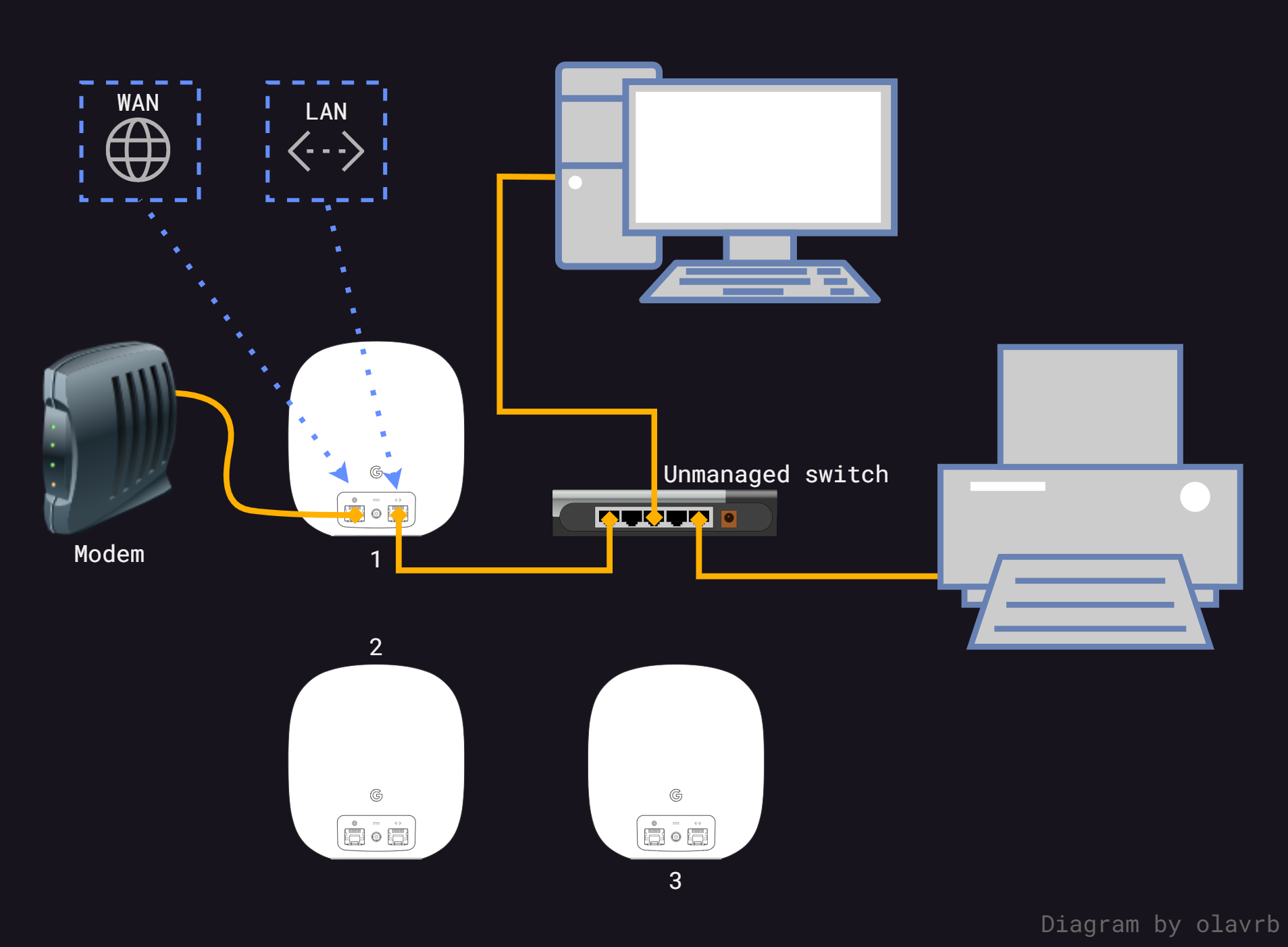

All secondaries as wireless​

all-wireless

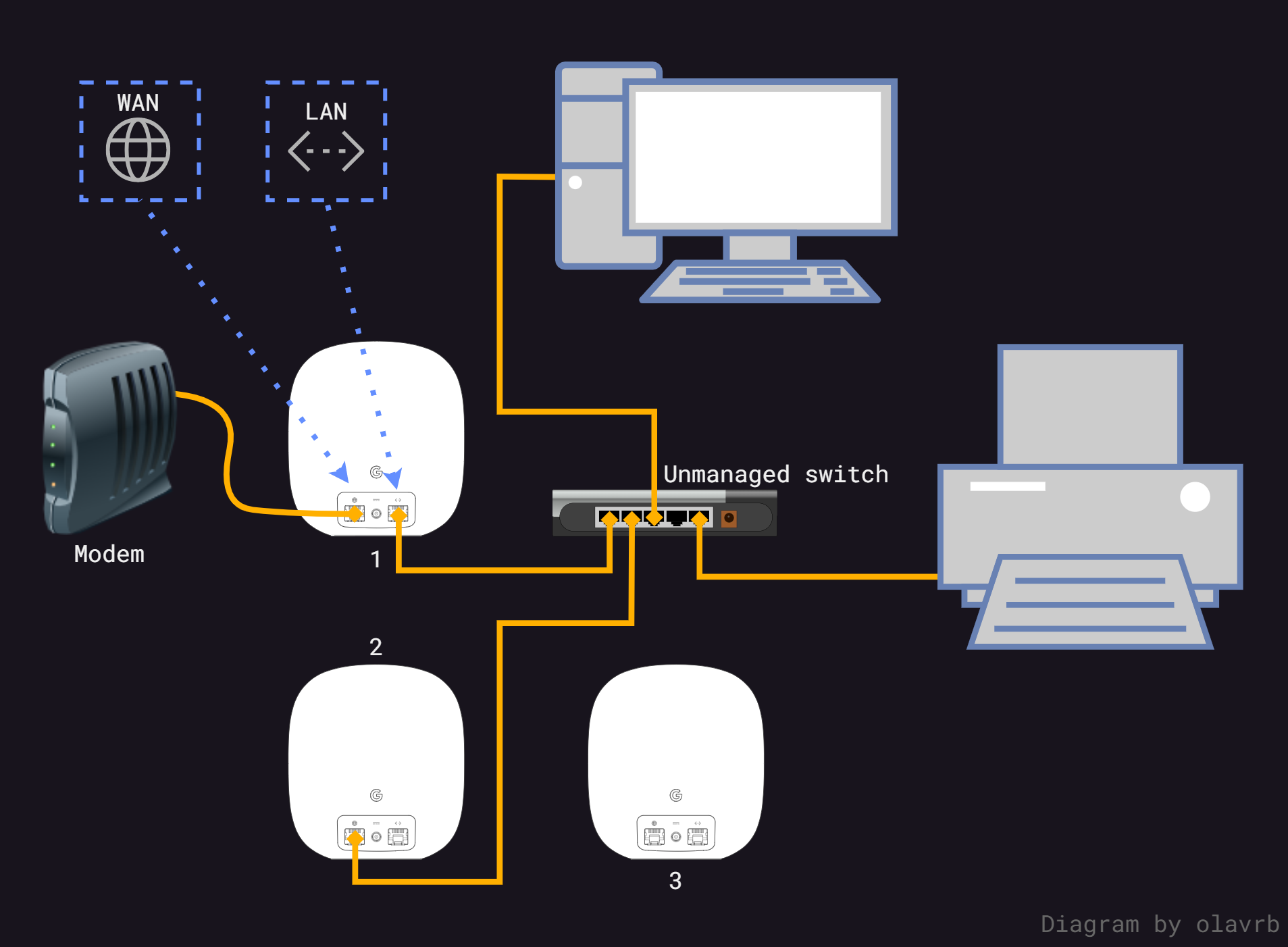

Mixed backhaul with switch​

mixed-with-switch

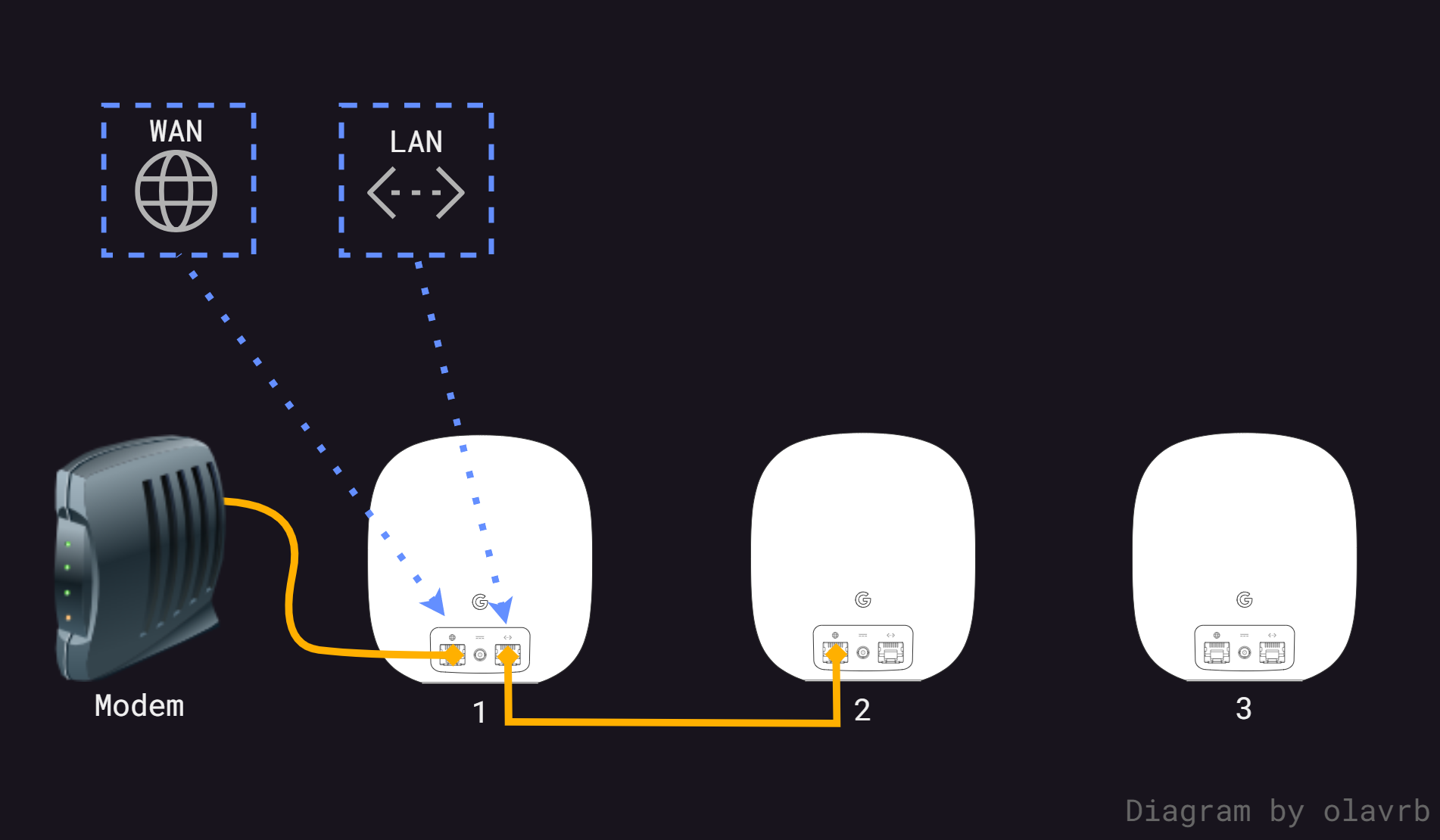

Mixed backhaul without switch​

mixed-no-switch

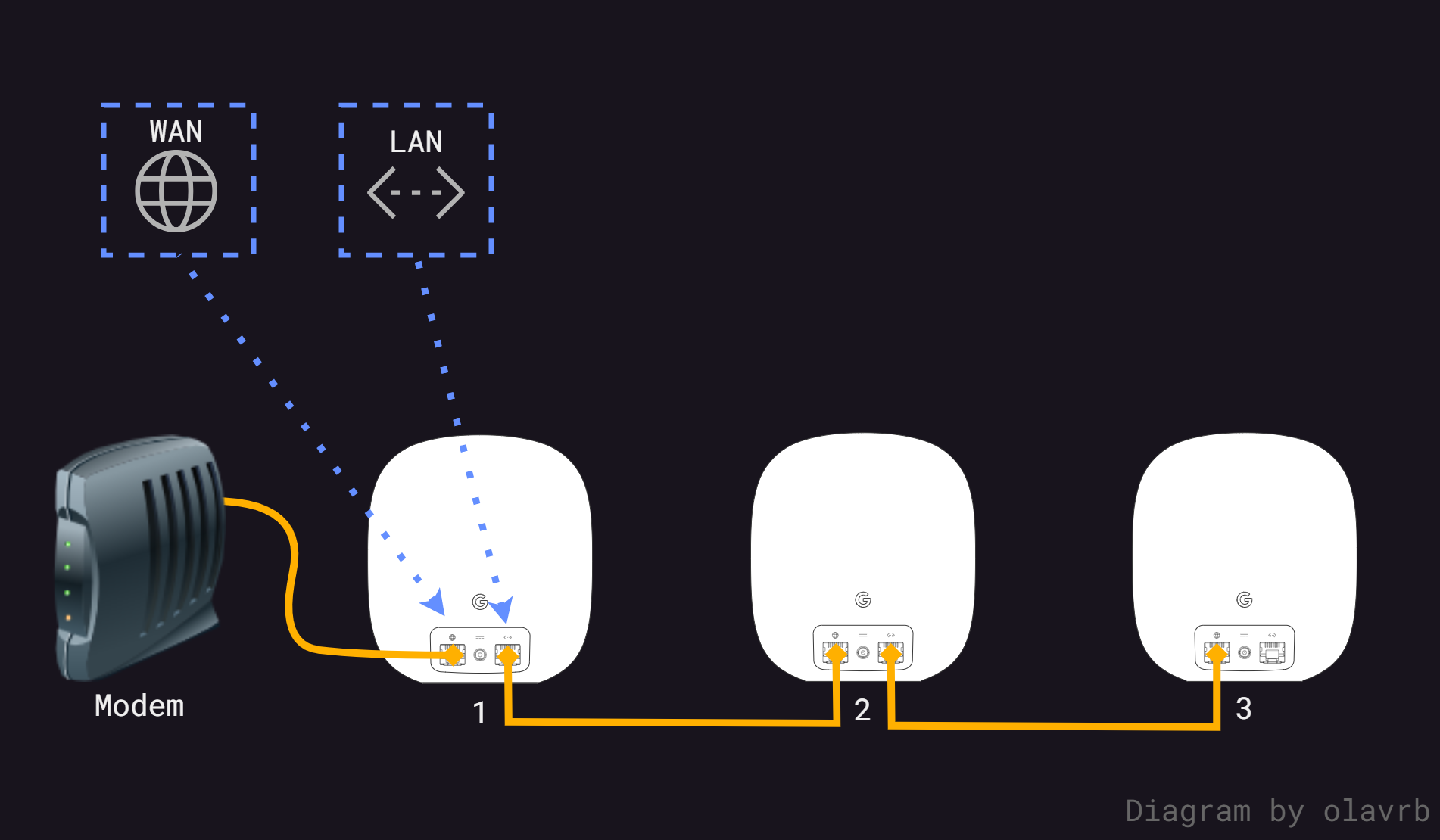

Daisy chain with no switch​

daisy-chain-no-switch

Daisy chain with switch at the end​

daisy-chain-with-switch

Does not work​

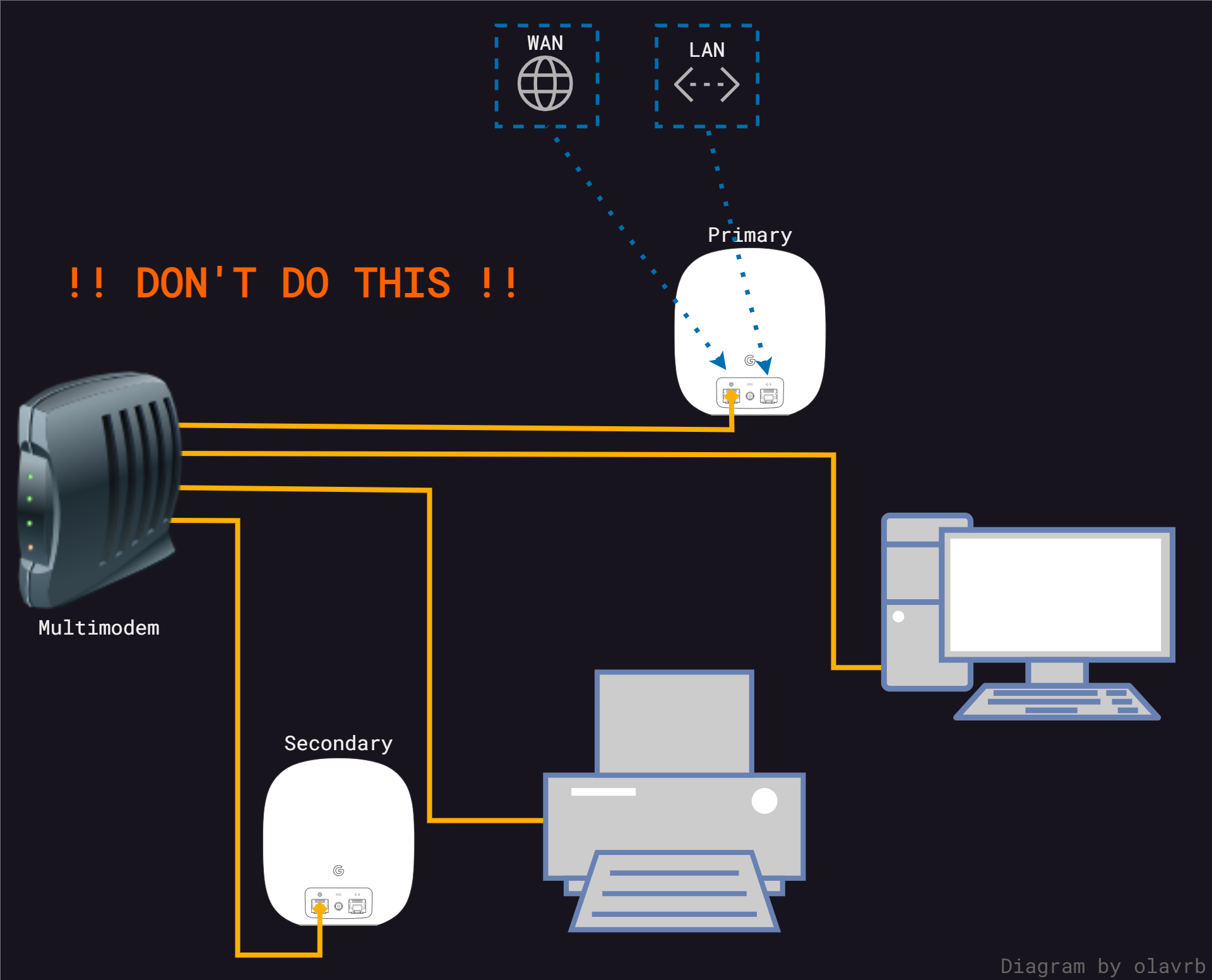

Modem as hub/main​

modem-as-hub

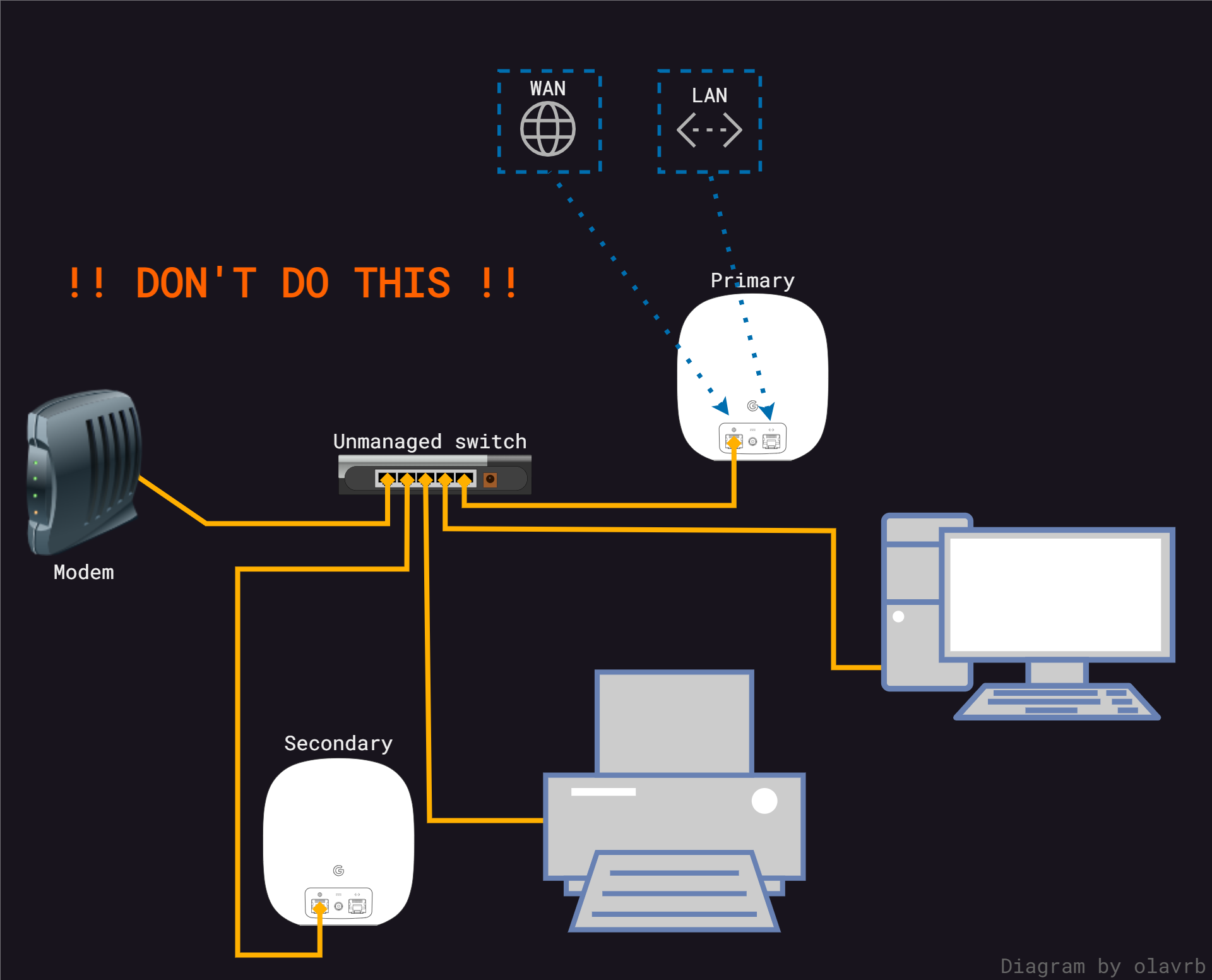

Switch before primary/main unit​

switch-before-main
